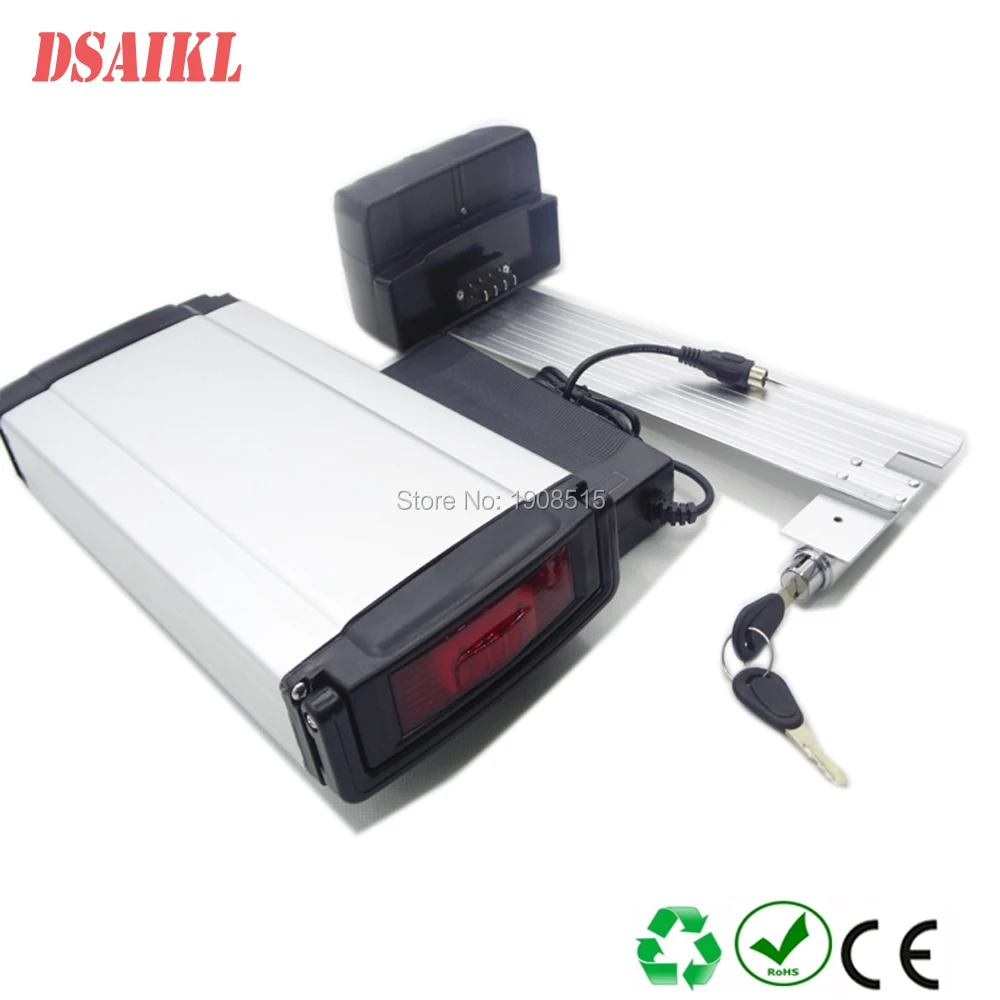

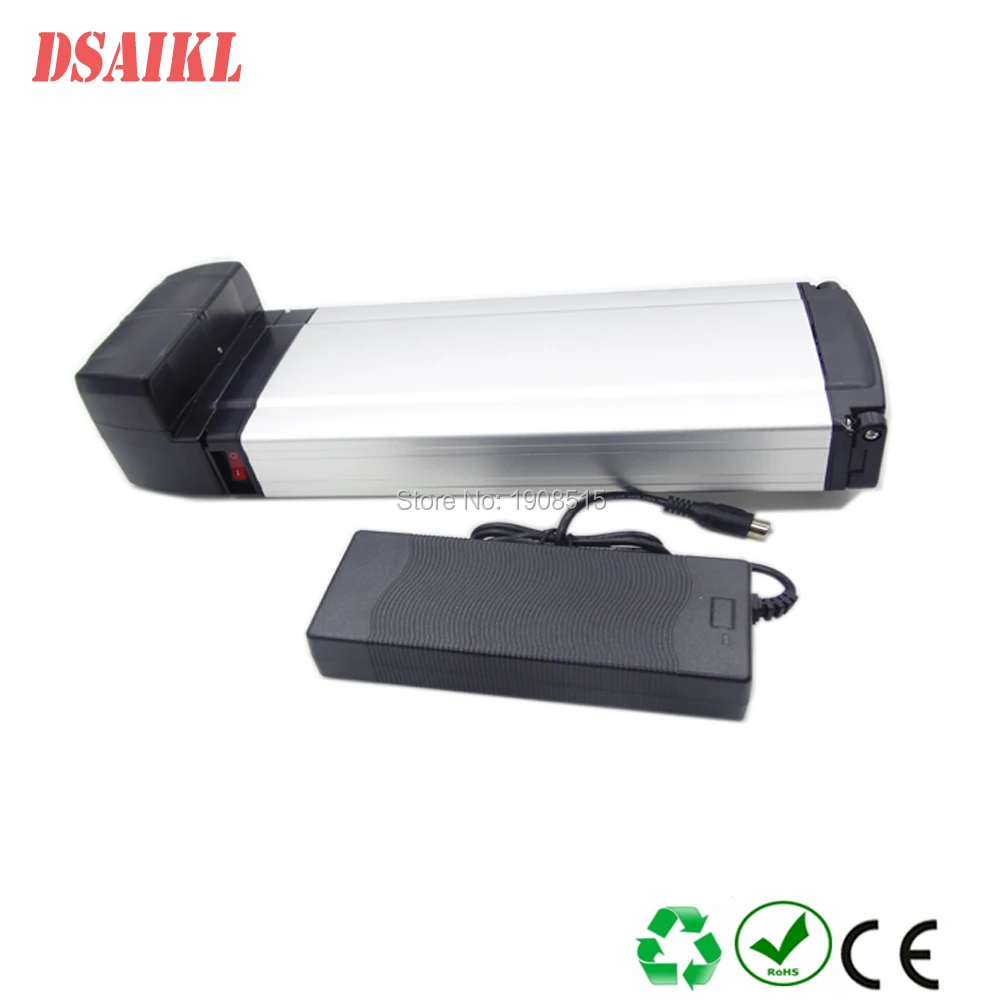

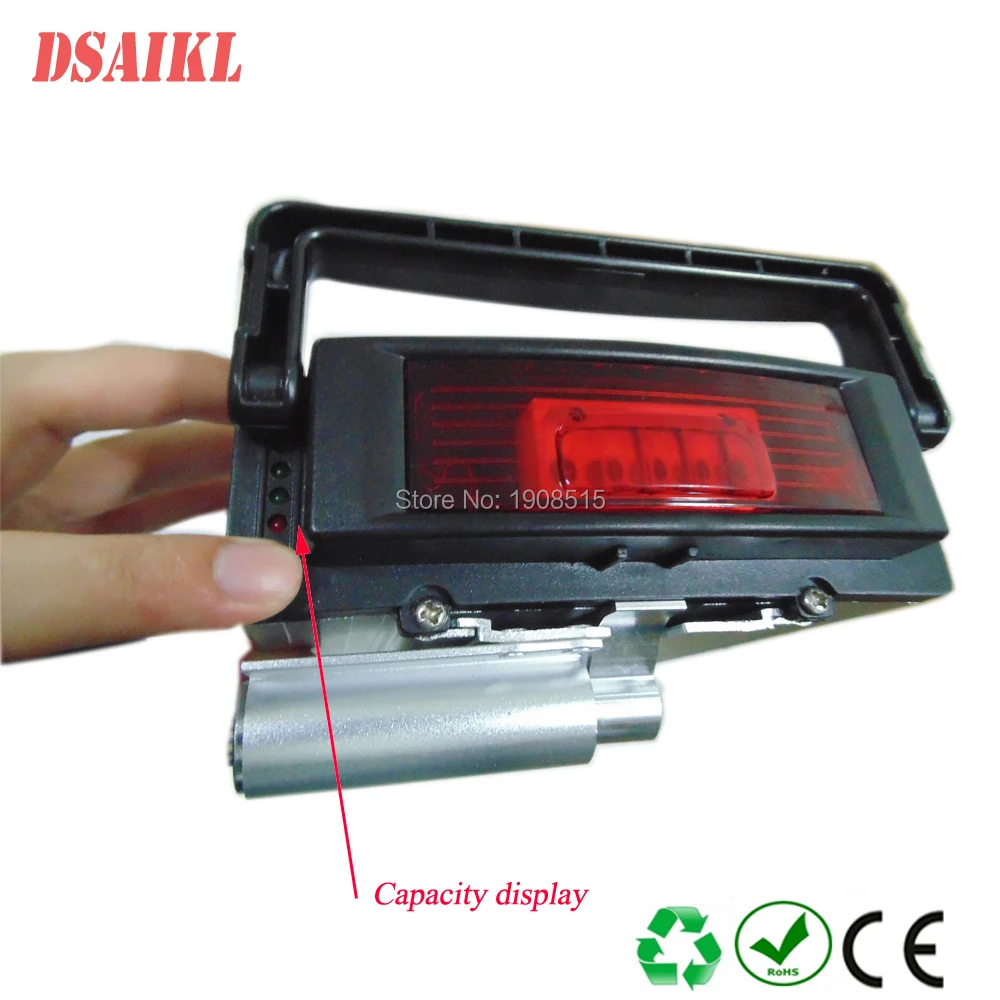

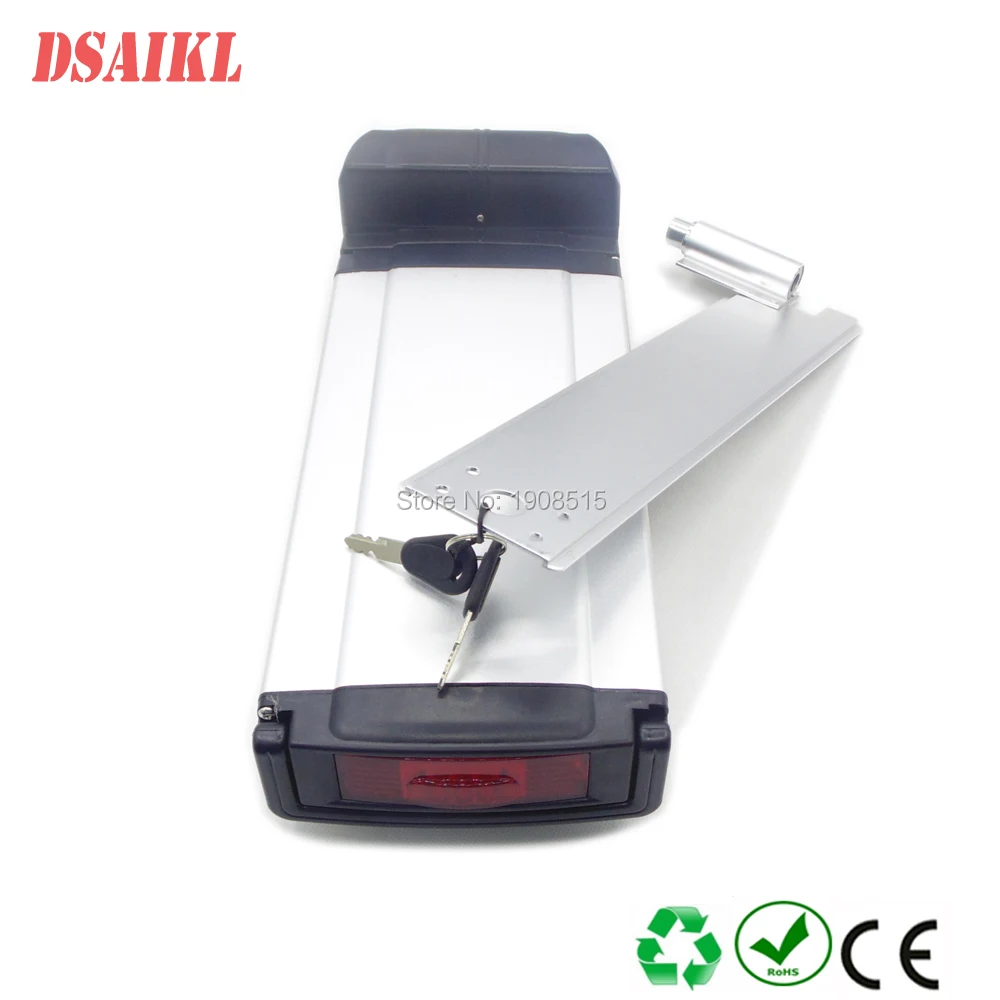

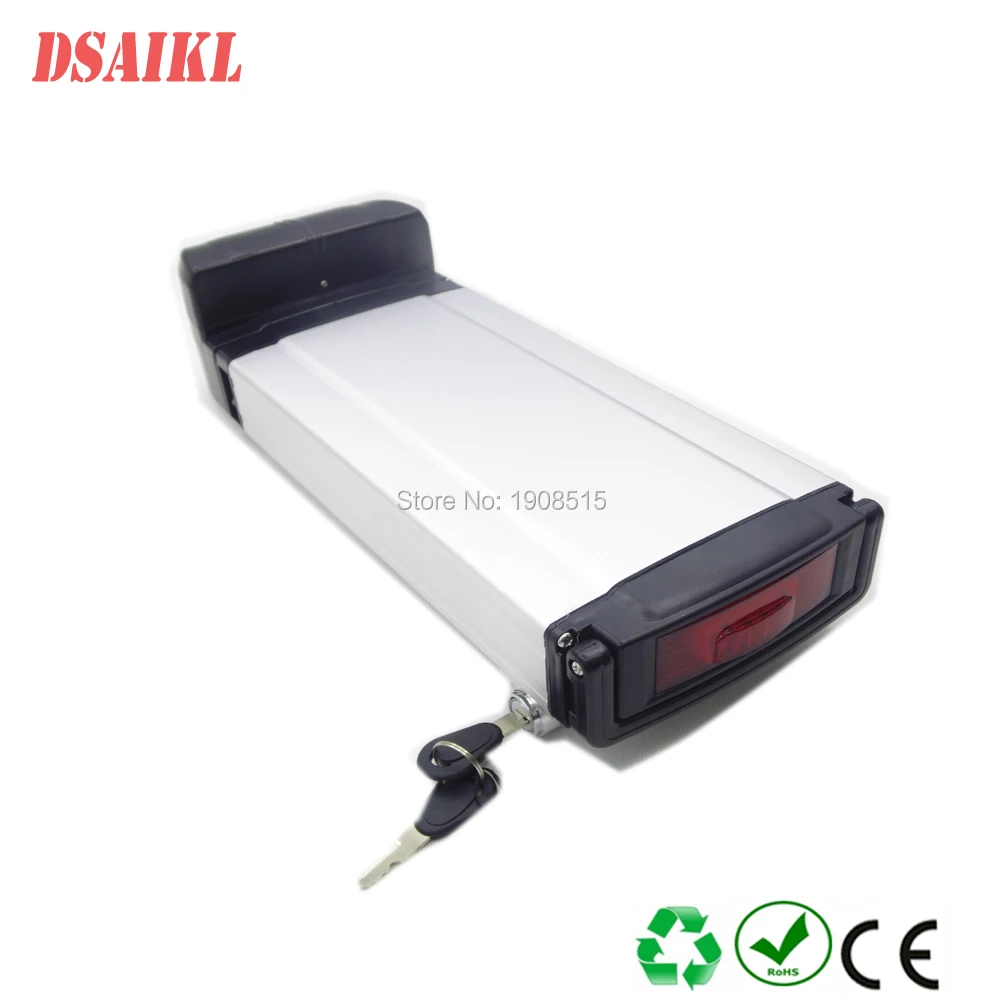

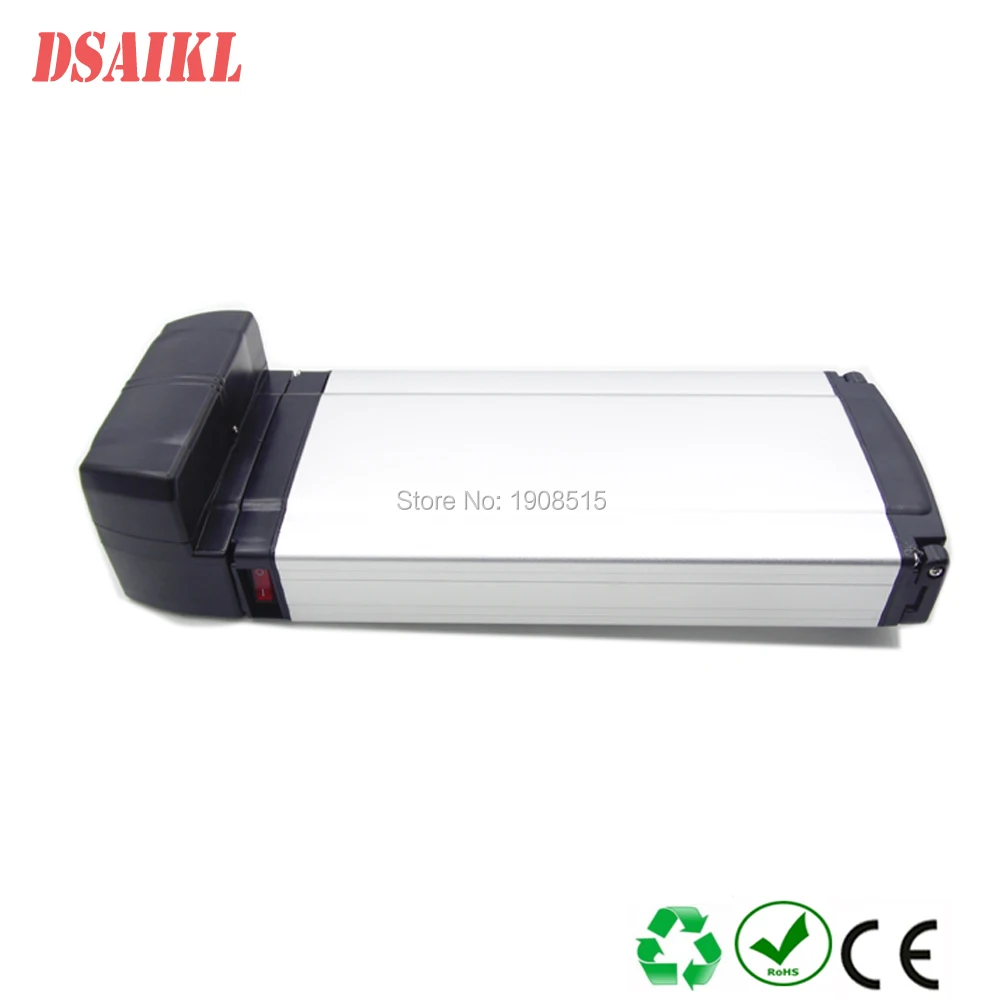

24V 12ah rear rack style lithium ion battery pack for electric bicycle

Mini PC Computer Host Built-in for Intel J1900 2.0GHZ Quad Core 4GB RAM 128GB SSD Mini PC Beelink J45 8GB DDR4 128GB J4205 Genuine Windows 10 Mini Pc Support HDD SSD DDR Windows10 2.4G 5.8G WiFi BT4.0 Set Top Box original Windows 10 Mini PC Computer Intel celeron jl900 cpu HDMI 128GB SSD 8GB RAM with wifi original Windows 10 Mini PC Computer AMD A6-l450 cpu HDMI 128GB SSD 8GB RAM with wifi Beelink J45 Mini PC 2.4G 5G WiFi BT4.0 Support 4K HD H.265 1000 Mbps Ethernet Intel Apollo Lake Pentium Processor J4205 Mini PC Intel Core i5 8250U minipc i5 7200U Kaby Lake Fanless Computer i3 7100U Windows 10 Desktop Barebone i7 8550U pc original PIPO X3 Mini PC Windows 10 Home Desktop PC MINI Computer Tablet Pos 58mm printer Intel Z8350 8.9" RS232 4 USB WIFI HDMI Gemini X45 Mini PC J4105 Win10 8GB RAM 256/512GB mSATA SSD dual HDMI 4K 60Hz USB 3.0 1000Mbps WIFI BT NUC Windows Linux HTPC Winyao WYI350F4 PCI Express X4 Quad Port 1000Mbps Gigabit Ethernet Lan Fiber Server network card(850nm) For I350-F4 Nic ATATMEL-ICE-BASIC original genuine ATMEL Downloader Network to ZIGBEE, network to RS485 converter, modbus/tcp to MODBUS module NRF24LU1 NRF24LE1 module development kit (with development board and E1 module) (compatible with Nordic) HDMI hd video collection card 1080P USB3.0 free for PS4 / OBS live 50pcs GOOJODOQ USB 2.0 Hub to RJ45 Lan Network Card USB to 10/100 Mbps Ethernet Adapter for Mac Android PC Network Cards RTL8152 MAX1000 high power UWB module, long distance indoor positioning, ultra wideband positioning compatible DWM1000 FANMI LSI00330 9271-8i 8Port 6Gb/s PCI Express 3.0 1GB LSI SAS2008 ROC RAID Controller ,SAS Cable not included UWB positioning label 3d synchronization real-time high precision indoor positioning system RTLS UWB Mini3s Plus, an integrated ultra long distance indoor positioning 300 m DWM1000 IOT-NODE433 node 433M microcontroller wireless communication development learning module CC1000 Base station tag of ultra wideband UWB dwm1000 long distance power amplifier For ADAU1452 development board /ADI low cost development board /SigmaDSP development board Embedded development board MIPS technology extension development board JZ4740 Qualcomm IPQ4019 dual frequency 11ac program development board OpenWRT software and hardware customization PCI9052 development board PCI to ISA PLX9052 Kintex-7 high speed connection functional floor, PCIe Gen2 x4, double 10G Ethernet, SATA For FMC LPC expansion board, plate pin, SMA expansion board, debugging adapter BYSS-FMCL-BO HT-M01 LoRa gateway Rolla gateway Lora base station Semtech SX1301 SX1308 chip

Brand Name Dsaikl

Capacity 10 - 20Ah

Voltage 24v

Type Lithium Battery

CASE Rear rack

dimension 50*150*385mm

battery model 24V 12ah

charger 29.4V 2A

BMS 10A-15A

Product name: 24V12ahrearrackstylelithiumionbatterypackforelectricbicycle Battery pack Datasheet Model DTB2412TB0720 Chemistry Li-ion Nominal Voltage 24V Nominal Capacity 12Ah Weight Approx. 3.2KG Outer case Rear rack Dimension 385*150*50mm or customized Standard Charge Constant Current 0.2C, Constant Voltage 29.4V 100mA Cut-off Fast Charge Constant Current 0.5CA, Constant Voltage 29.6V 100mA Cut-off Standard Discharge Constant Current 0.2C/End Voltage 21V Cycle Life 700 times Max discharge current 15A BMS function Over-Current Protection,Over-Discharge Protection, Over-Charge Protection,Short-Circuit Protection, Balance Storage Temperature Range Temperature: -10-40 Relative humidity:45-75% Pressure: 86-106KPa Product picture: BatteryShippingway: FedexUPStoUSA,Canada,Mexico,Israel ​UPS,FEDEX,DHLtoEurocountries Professionalservice,orFedex,EMS,TNTtoJapan,SouthKorea,Thailand,Singapore,NewZealandandAustrialia Cautions: 1.Use special caution when working with Li-ion cells, they are very sensitive to charging characteristics and may explode if mishandled; 2. Make sure user has enough knowledge on Li-ion rechargeable batteries incharging, discharging and assembly before use; 3. We are not responsible for any damage caused by misuse or mishandling of these Li-ion batteries; 4. Strongly suggest that you use our smart Li-ion battery charger to recharge the battery pack; 5. Never use conventional DC adapter to charge the battery module.
