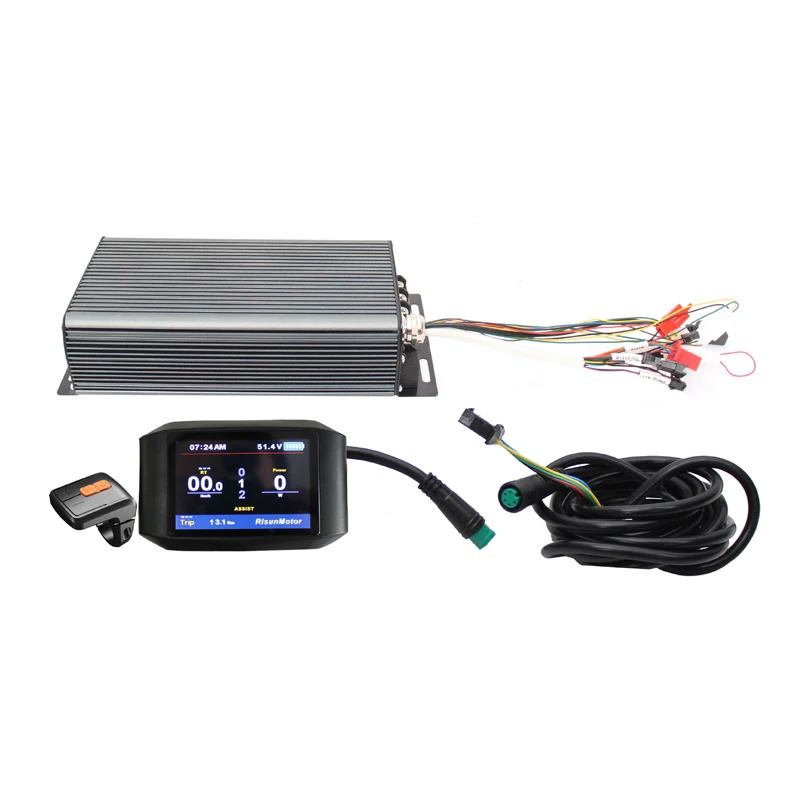

48V 60V 72V 100A 3000-5000W Regenerative Programmable Controller Ebike DIY Kit With Alarm System+750C Display+PAS+Brakes

Brand Name RisunMotor

Type Other

Controller Voltage 48V, 60V, 72V

Max Current of Controller 100A

MOSFET 24MOSFET

Controller Power 3000-5000W

Controller Color Matt silver

Display Full Color TFT RSM-750c Display

Display Voltage 48V, 60V, 72V

PAS 8 Magnetic PAS

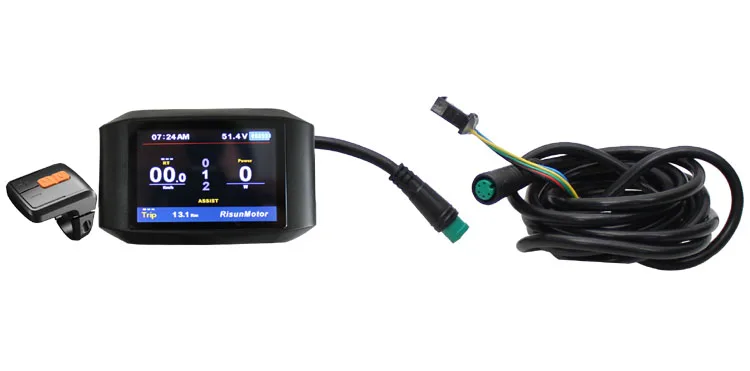

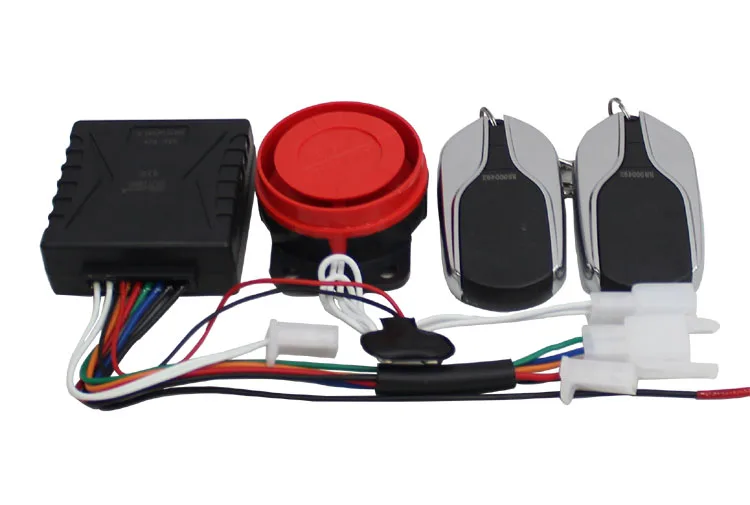

①. 24 MOSFET 100A 48V, 60V, 72V Universal 3000-5000W Intelligent Programmable Controller ②. 36V, 48V, 60V, 72V Full color TFT RSM-750c Display (with 5-level PAS, speed limit, speed display, Regenerative Function wait for parameter setting) ③. TAE (HD-E530) Hydraulic Disc Brake, cut off power ④. Twist Throttle Drive ⑤. Pedelec Assistant Sensor/8 Magnetic PAS Drive ⑥. Alarm System|Remote start + Alarm + Motor Lock Carton Size: 44x22x16cm Gross Weight: 5kgs (with carton) Attention: This controller kit is for normal ebikes, but since the controller is designed forourFC-1eBike, Ifyourmotorcan'tworkproperly,pleasekindlyswap BlueandGreenwires of both3-phaseandHallSensor(Yellowwire doesn't change). Technical Data: General Specification: 1. Power supply: 48V/60V/72V, MAX DC current: 100A, Max phase current: 250A 2. Rated Power: 48V 3300W/ 60V 4200W/ 72V 5000W 3. Peak Power: 48V 4800W/ 60V 6000W/ 72V 7200W 4. Low Voltage Protection: 40V/50V/60V 5. Brake: Low Voltage Brake 6. Alarm: Low Voltage Alarm 7. Rotor Position Detecting Method: Hall sensor 8. Mobile phone App or computer software can communicate with the controller to modify parameter 9. Size: 275x121x62mm 10. Net Weight: 2.05 kgs 11. Waterproof Grade: IP65 Advantage: 1.Programmable Sine Wave Controller which support big current and smart match with each motor through self-learning, works with high efficiency, less noise, and lower energy consumption, which makes your electric vehicles or electric motorcycles more comfortable and easier to control, give you best pedal experience Item hasone yearguarantee. Customer's wrong operation is not include in this warranty. Import duty/tax is NOTinclude in item price. Returning an item couldn't be easier. If you need to send item back, you have 14 days from the date you received your order to exchange or return. Sale item is not returnable. Please make sure your item is returned new and unused unless the item is faulty. Returns that do not meet our policy will not be accepted and will be sent back to the customer.
